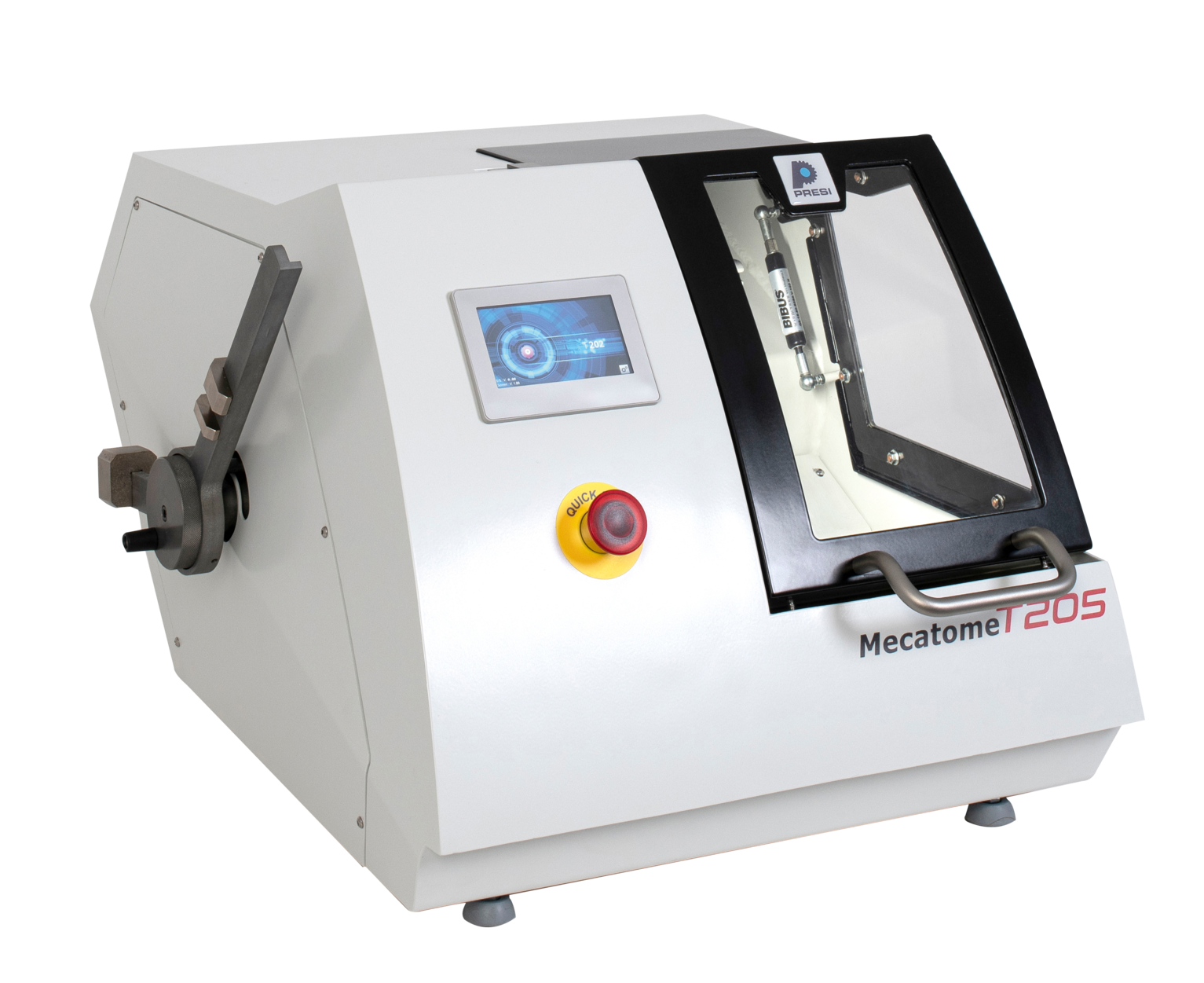

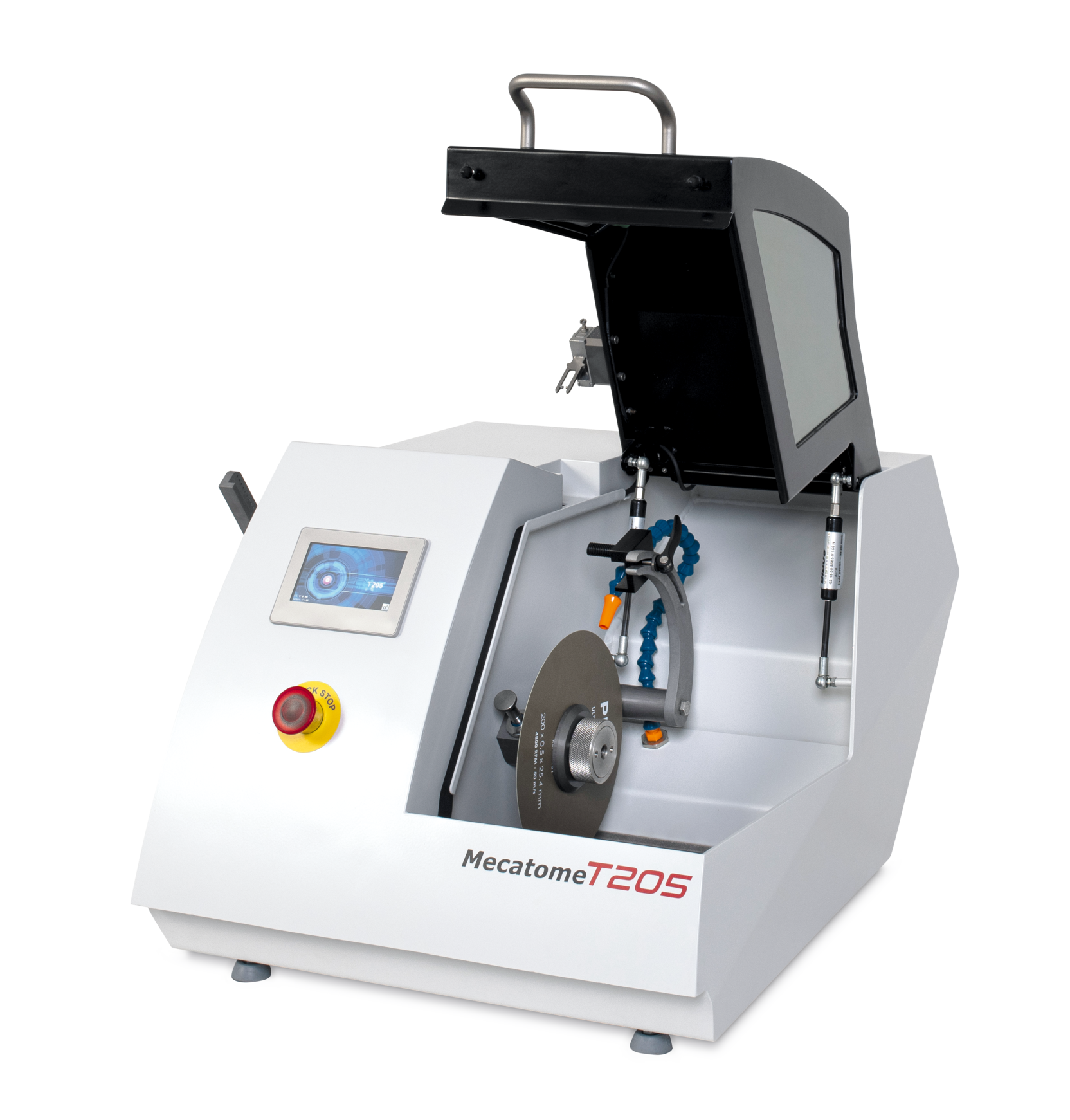

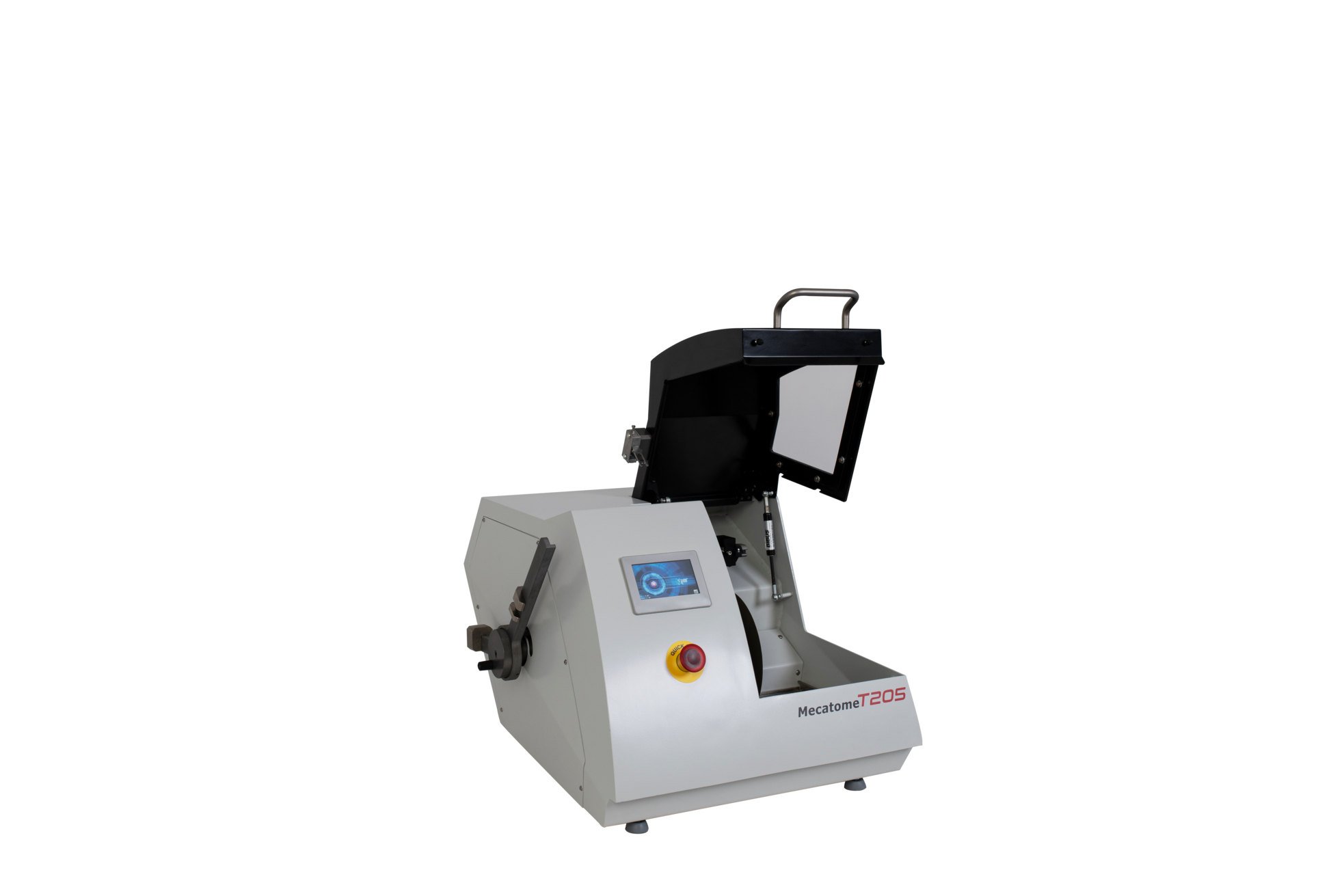

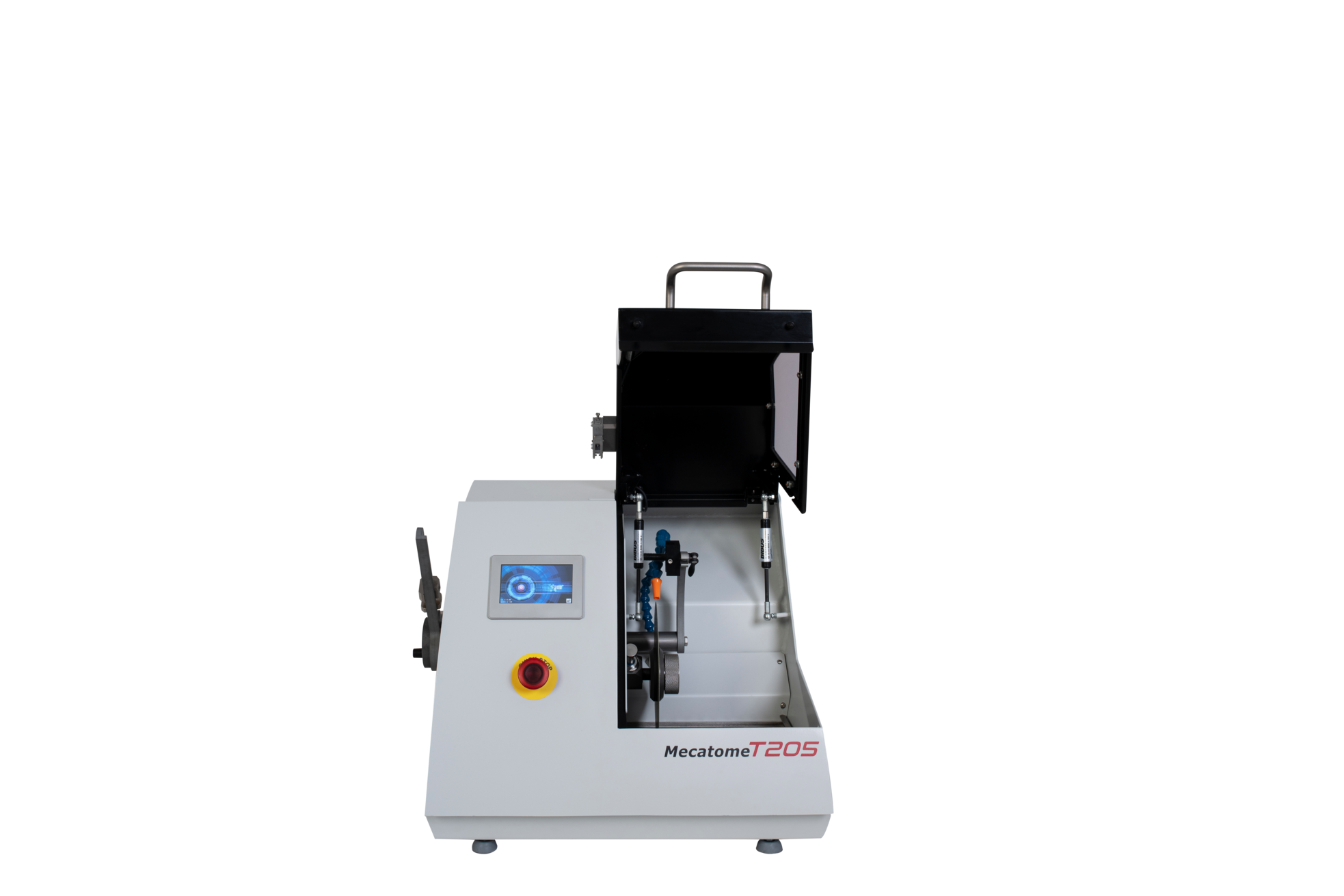

PRESI MECATOME T205 – Manual Precision Cutting Machine for Superior Accuracy

The PRESI MECATOME T205 is a robust and compact precision cutting machine specifically designed for metallography and material science. It combines intuitive operation with maximum flexibility, allowing for high-precision cuts across a vast range of materials.

From delicate electronic components to extremely hard alloys, the MECATOME T205 delivers reproducible results with a minimal footprint. Thanks to its ergonomic design and powerful technology, it is the ideal solution for laboratories that prioritize accuracy, reliability, and ease of use.

Key Features & Benefits:

• Ultra-High Precision: Engineered for the finest micro-cutting with exact positioning capabilities.
• Versatility: Suitable for a wide spectrum of materials, ranging from soft tissues and electronics to hardened steels.
• Compact Design: Optimized footprint with a surprisingly spacious cutting chamber – perfect for labs where space is at a premium.
• Powerful Drive System: The high-torque brushless motor ensures constant speed and performance across the entire range of 100 to 4000 RPM.
• Intuitive Interface: Easy-to-use touch display for quick adjustment of all cutting parameters.
• Safety & Visibility: Robust protective cover with integrated high-power LED lighting for a clear view of the cutting process.

Technical Specifications at a Glance:

• Cutting Capacity: Compatible with cut-off wheels from Ø 75 mm to Ø 200 mm.
• Variable Speed: Adjustable from 100 to 4,000 RPM for optimal material adaptation.
• Positioning: Digital display for micrometric cross-feed (X-axis) adjustment.
• Cooling System: Integrated recirculation system to prevent thermal damage and preserve the material structure.
• Memory Function: Store up to 3 customized cutting programs for standardized, repeatable processes.

Areas of Application:

The MECATOME T205 is the perfect tool for quality control and failure analysis in industries such as watchmaking, medical technology, automotive engineering, and R&D laboratories.
