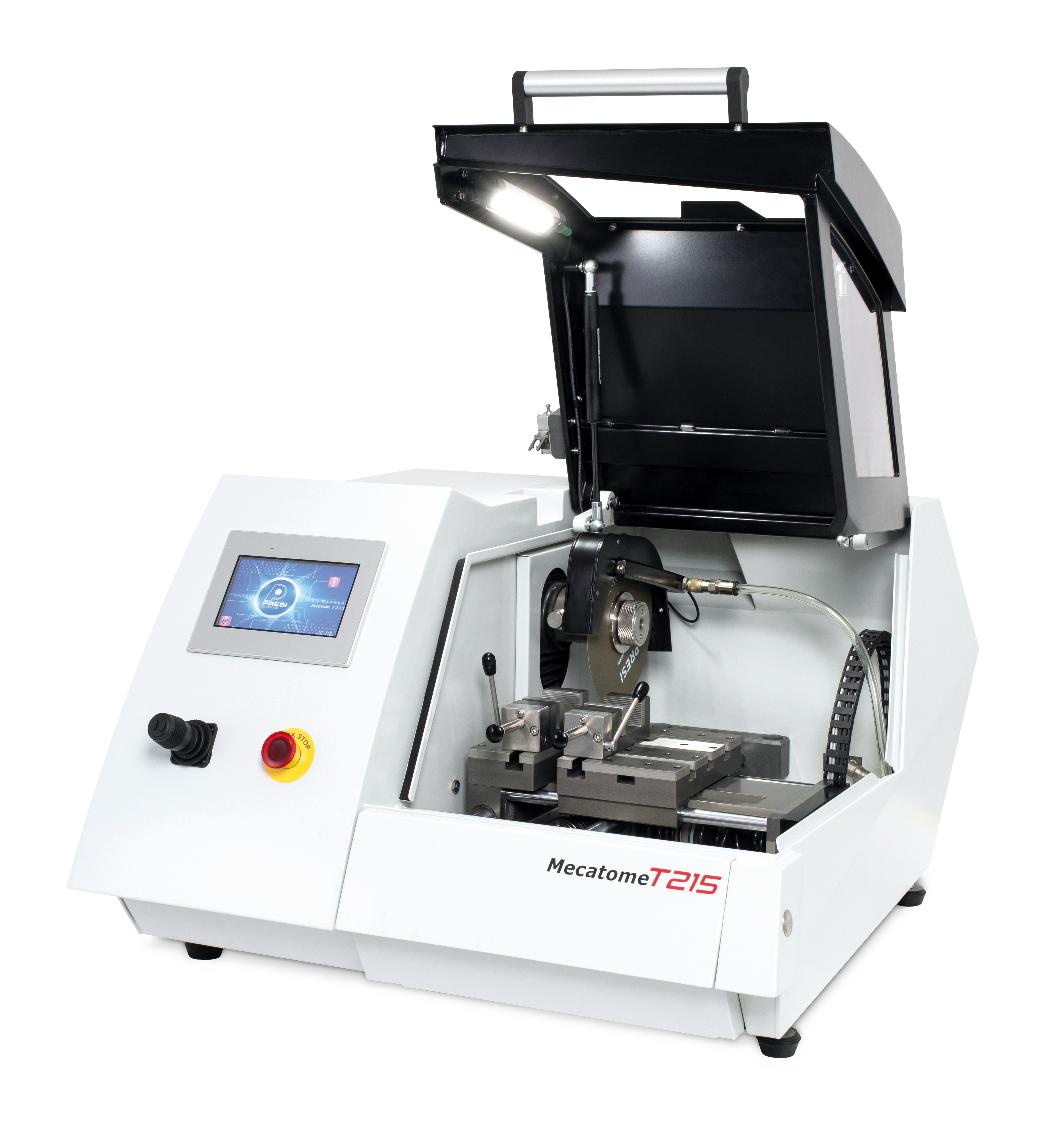

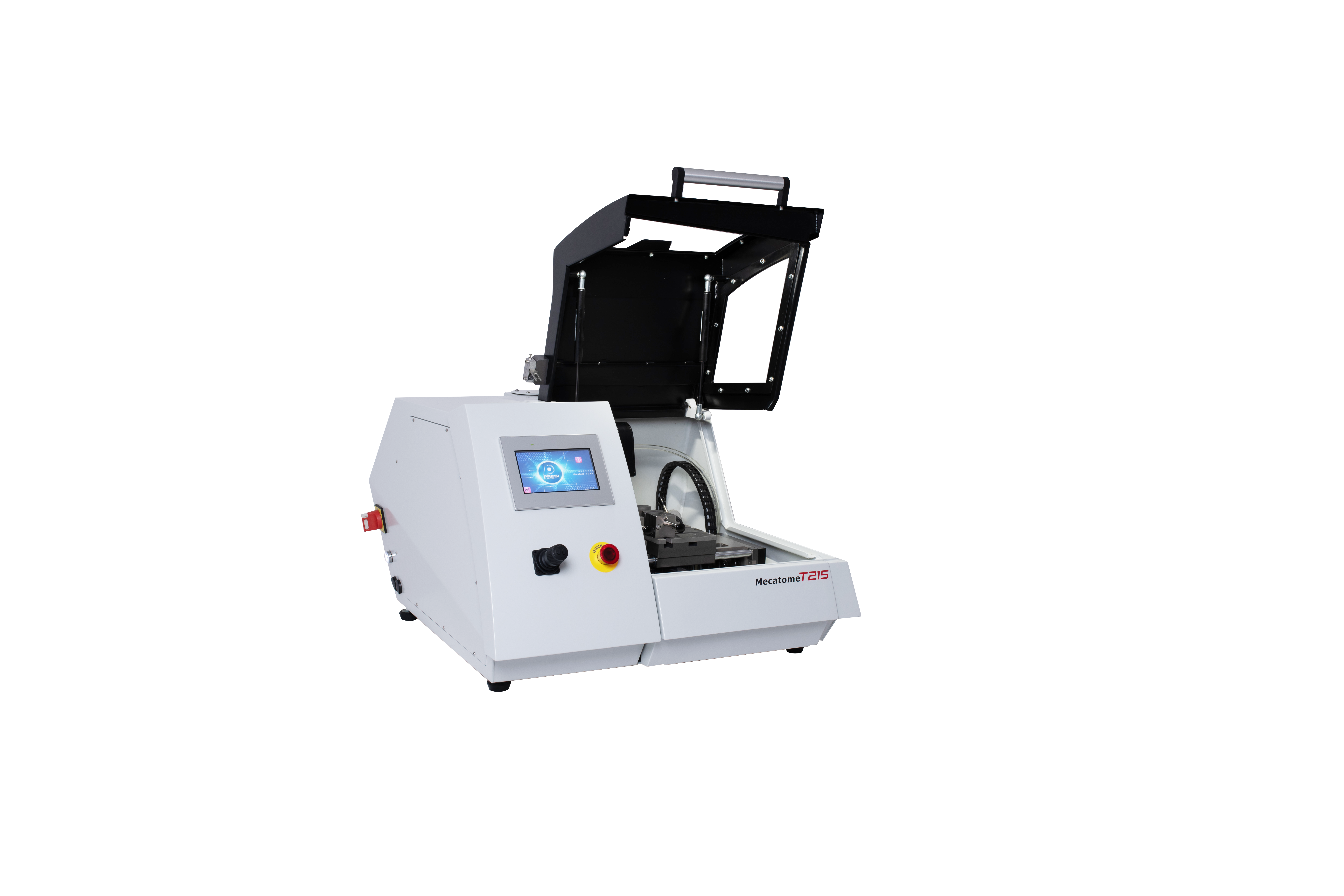

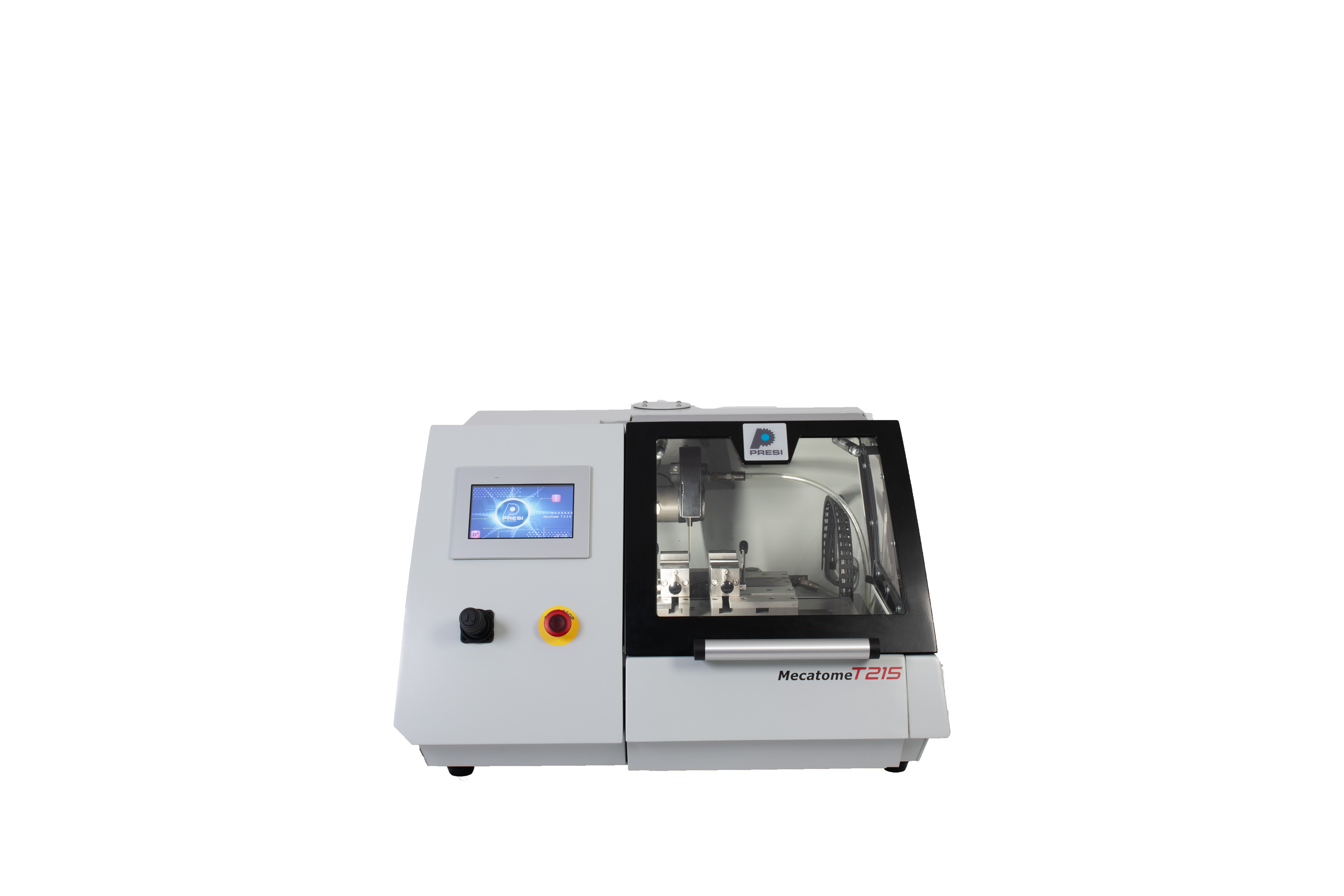

PRESI MECATOME T215 – Automatic Precision Cutting Machine for Complex Tasks

The PRESI MECATOME T215 is a state-of-the-art, automatic precision cutting machine that sets new standards in flexibility and ease of use. Equipped with programmable motorized axes, it is the perfect solution for demanding laboratories requiring maximum precision combined with high-level automation.

Thanks to its robust construction and intelligent control system, the MECATOME T215 masters even the most difficult cutting tasks on complex components. It combines a compact footprint with the performance of an industrial machine, delivering absolutely reproducible results for metallography and materials science.

Key Features & Benefits:

• Motorized Precision Axes: Fully automatic control and programming of the X, Y, and Z axes for maximum precision and repeatable serial cuts.
• Advanced Cutting Modes: Supports various cutting techniques (e.g., pulse cutting, oscillating cutting) to optimize the processing of extremely hard or sensitive materials.
• Intuitive Touch Control: A modern color touchscreen allows for easy programming and real-time monitoring of all operating parameters.
• Precision Joystick: Allows for fast and sensitive manual positioning of the cut-off wheel or the table before starting the automatic cycle.
• Compact Power: Despite its small footprint, the machine offers a spacious cutting chamber and a powerful motor for wheels up to Ø 200 mm.
• Maximum Safety: A locked protective cover and bright LED interior lighting ensure a safe and clearly visible cutting process.

Technical Specifications at a Glance:

• Cutting Capacity: Designed for cut-off wheels from Ø 75 mm to Ø 200 mm.
• Axis Control: Motorized X-axis (optional), Y-axis (feed), and Z-axis (height adjustment).
• Speed Range: Variably adjustable (300 to 5,000 RPM) for optimal cutting speeds.
• Work Table: Robust cast iron table with T-slots for versatile clamping options.
• Cooling System: Integrated recirculation system to prevent structural changes caused by heat development.

Areas of Application:

The MECATOME T215 is predestined for serial testing and the processing of small parts in the watchmaking industry, aerospace, medical technology, and research centers where documentation and reproducibility are top priorities.
