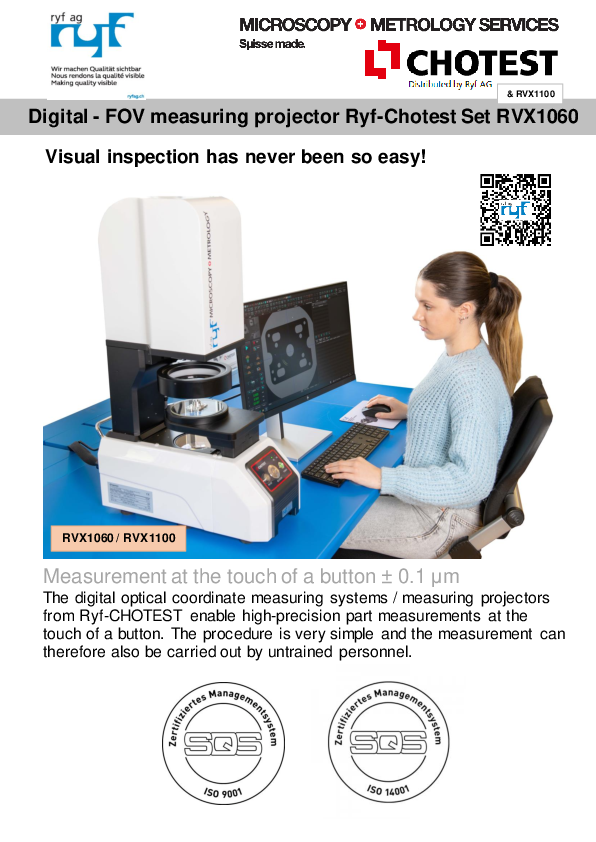

Digital - FOV measuring projector Ryf-Chotest Set RVX1060 / RVX1100

Optical inspection has never been so easy!

The optical measuring machines of the FLASH 'RVX' series are characterised by their high measuring speed. They are able to analyse hundreds of unaligned parts in just a few seconds.
This incredible ease of use allows untrained to untrained personnel to analyse in a few seconds.

Thanks to an advanced telecentric lens system, the FLASH machines offer an extremely large 2D view, sharp images, optimal contrast without distorting the image and still ensuring a high depth of field. The combination of the two ultra-high-resolution CMOS sensors and innovative deep learning algorithms enables precise visualization and analysis of even the smallest errors or deviations. Even the smallest and difficult to detect deviations or errors can be visualized and analyzed. Both models are equipped with two LED lights. The large segment ring LED (4 segments in reflected light) is permanently installed.

Measuring simply at the push of a button ± 0.1 μm
The digital FOV measuring projectors from CHOTEST enable high-precision part measurements at the push of a button. The procedure is very simple, so the measurement can also be carried out by untrained personnel.

Camera sensor:                                             20 MPx, CMOS Cameras

Lens type:                                                      Double telecentric high-end lens

Software:                                                       VisionX

Resolution:                                                     ± 0,1 μm

Repeatability:                                                  ± 1,0 μm bei Ø 60mm / ± 2,0 μm bei Ø 100mm

Measuring accuracy:                                     ± 3,0 μm bei Ø 60mm / ± 4,0 μm bei Ø 100mm

Measuring accuracy with stitching:               ± (2+0.02L) μm / Large field of vision =  ± (4+0.02L) μm

Field of vision -FOV Area in the Ø:               Ø 60mm (RVX1100 = Ø100mm)

Measuring range in Z:                                   Z = 35mm

Max. Load:                                                     3 kg

Outer dimensions (LxBxH):                          500x280x670mm / Total weight 25kg

Screen:                                                          24 Zoll, XGA 1920x1080

Lighting:                                                         Coaxial LED transmitted light and 4-fold segment incident LED ring light

Automatic calibration:                                     Quite simply with the large chessboard measuring glass plate

Computer:                                                      HP PC with appropriate graphics cards with WIN11/10 (incl.)

Warranty:                                                       24-month Ryf full warranty with on-site support

(*FOV = Field of View)
